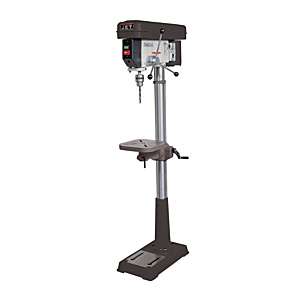

Jet 354400 J-2500 15 Inch Floor Model Drill Press

The Jet 354400 J-2500 15 Inch Floor Model Drill Press boasts a 3/4HP motor and tilting table. Simple yet powerful, the J-2500 has a cast iron head and large quill - allowing greater accuracy. Head casting features a pemanently lubricated ball bearing spindle assembly, using four heavy duty ball bearings mounted in an enclosed quill for extended life. Accurate depth stop displays inch/mm and has quick set bolt for fast, accurate adjustments. Large ground steel column diameter for maximum head and table supportTable tilts 45°.

Jet 354400 J-2500 Specifications:

Model Number J-2500
Brand Jet
Overall Dimensions 26 X 13-3/8 X 63-1/2
Height 10.5 inch
Width 20 inch
Length 54 inch
Net Weight 167 pound
Gross Weight 167 pound
Motor 3/4HP, 115V, 1 Ph,
Number of Spindle speeds 16
Range of Spindle Speeds (RPM) 200,290,350,430,500,580,640,720,800,870,1440,1630,1820,2380,2540,3630
Spindle Taper MT-2
Quill Diameter (in.) 1-7/8
T-Slots Number and Size (in.) N/A
Column Diameter (in.) 2-7/8
Base Dimensions (LxWxH/ in.) 11 x 19-1/2
Drilling Capacity Cast Iron (in.) 5/8
Drilling Capacity Mild Steel (in.) 1/2
Quill Travel (in.) 3-1/8
Distance Base to Spindle (in.) 48-3/4
Table Size (in.) 11-1/2 x 11-1/2
Chuck Size (in.) 5/8
Drills to Center of Circle (in) 15
Spindle Distance to Base (in.) 48-3/4
Swing (in.) 15
Base Work Table (in.) 11 X 19-1/2
Spindle Travel (in.) 3-1/8
Table Dimensions 11-1/2 x 11-1/
