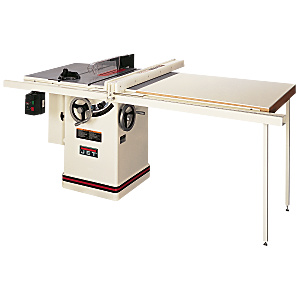

Jet 708663PK JTAS-10XL50-1PK, 3HP, 1Ph XACTASAW Left with 50 Inch Fence

The popular Jet 708663PK JTAS-10XL50-1PK, 3HP, 1Ph XACTASAW Left with 50 Inch Fence, Table and Legs boasts a powerful 3 HP motor and exclusive 50" commercial XACTA fence II with T-square design. This XACTASAW is left til with a wide stance heavy-duty trunnion for stability and smooth blade positioning, and powder coated for a long lasting, chip resistant finish.

Jet 708663PK JTAS-10XL50-1PK Specifications:

Model Number JTAS-10XL50-1
Brand Jet
Height 0 inch
Width 0 inch
Length 0 inch
Net Weight 528 pound
Gross Weight 528 pound
Blade Diameter 10 "
Arbor Diameter 5/8 "
Arbor Speed 4200 RPM
Maximum Depth of Cut 3 "
Maximum Depth of Cut at 45 Degrees 2 1/8 "
Maximum Rip Right of Blade 50 "
Maximum Rip Left of Blade 12 "
Table in Front of Saw Blade at Maximum Depth of Cut 12 "
Maximum Width of Dado 13/16 "
Maximum Diameter of Dado 8 "
Table Type Cast Iron
Table Height 34 "
Table Size with Standard Extension (L x W) 27 x 40 "
Table Size without Extension (L x W) 27 x 20 "
Dust Port Outside Diameter 4 "
Dust Collection Minimum CFM Required 350 cu.ft/min
Motor Power 3 HP
Motor Voltage 230 V
Prewired Voltage 230 V
Motor Current 14.5 A
Motor Phase 1 Ph
