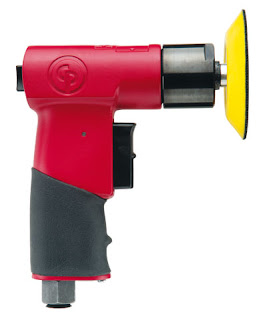

Chicago Pneumatic CP7201 Mini Disc Polisher 3 Inch (75mm) Hook & Loop pad

Chicago Pneumatic CP7201 Mini Disc Polisher 3 Inch (75mm) Hook & Loop pad

The Chicago Pneumatic CP7201 Mini Disc Polisher 3 Inch (75mm) Hook & Loop pad.

Powerful, resist to stalls
Rubber molded pistol grip
Adjustable power regulator
Two finger progressive throttle
Silence handle exhaust
Benefits Compact and lightweight
Maximize operator control and ergonomic, less fatigue
Job done faster and easier
Excellent for small area repair

Chicago Pneumatic CP7201 Polisher Specifications:

Part number 8941072014
Model CP7201
Pad diameter 75 mm 3"
Pad diameter 3" 75 mm
Pad type Hook & Loop yes
Pad type PSA no
Paper size 75 mm 3"
Paper size 3" 75 mm
Free speed 2500 rpm
Pad holes number 0
Spindle thread 1/4-20
Length 4.72 mm 120"
Length 120" 4.72 mm
Weight 0,79 1,74
Weight 1,74 0,79
Noise level 88 db(A)
Sound Power 99 db(A)
Vibration (ISO-8662-8) <2.5 m/s²
Vibration α (ISO-28927-3) <2.5 m/s²
Average air consumption 255 l/mn 9 cfm
Average air consumption 9 cfm 255 l/mn
Actual air consumption 510 l/mn 18 cfm
Actual air consumption 18 cfm 510 l/mn
Free speed air consumption 297 l/s 10.5 cfm
Free speed air consumption 10.5 cfm
Min. hose size 10 mm 3/8"
Min. hose size 3/8" 10 mm
Air inlet thread size NPTF in. 1/4 NPTF in.
