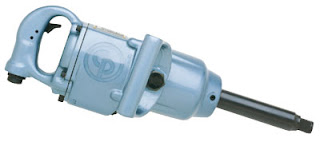

Chicago Pneumatic CP797-6 1 Inch Super duty impact wrench

Chicago Pneumatic CP797-6 1 Inch Super duty impact wrench

The Chicago Pneumatic CP797-6 1 Inch Super duty impact wrench.

Rocking dog clutch
High performance and durability
Teasing throttle
Convenient reverse valve
Plus 6" extended anvil

Chicago Pneumatic CP797-6 Specifications:

Part number T013901
Model CP797-6
Handle type Straight
Square drive 1"
Working Torque Range (fwd) 203-1220 Nm 150-900
Working Torque Range (fwd) 150-900 ft.lbs 203-1220
Maximum Torque (reverse) 1898 Nm 1400 ft.lbs
Maximum Torque (reverse) 1400 ft.lbs 1898 Nm
Free speed 4200 rpm
Blows per minute 1080
Weight 29.75 lb 13.49 kg
Weight 13.49 kg 29.75 lb
Length 22.25" 565 mm
Length 565 mm 22.25"
Average air consumption 10 cfm
Average air consumption 4.7 l/s 10 cfm
Actual air consumption 40 cfm
Actual air consumption 18.9 l/s 40 cfm
Air inlet thread size NPTF in. 1/2 NPTF in.
Min. hose size 13 mm 1/2"
Min. hose size 1/2" 13 mm
Noise level 110 db(A)
Sound Power 121 db(A)
Vibration (ISO-8662-7) 7.6 m/s²
Vibration α (ISO-28927-2) 12.8 m/s²
Vibration K (ISO-28927-2) 4.3 m/s²


Chicago Pneumatic CP797-6 Benefits:

The undisputed industry leader
Long known as the work workhorse of the truck tire industry
Clutch delivers smooth operation and extreme durability
Ideal for high volume work on trucks, buses, and heavy equipment
